configure
housing:
silver
veneer:
white
240V:
1 outlet
USB:
30W USB-C + 27W USB-A
Code:
OSL104S1W
- Aluminium housing available in white, silver or black

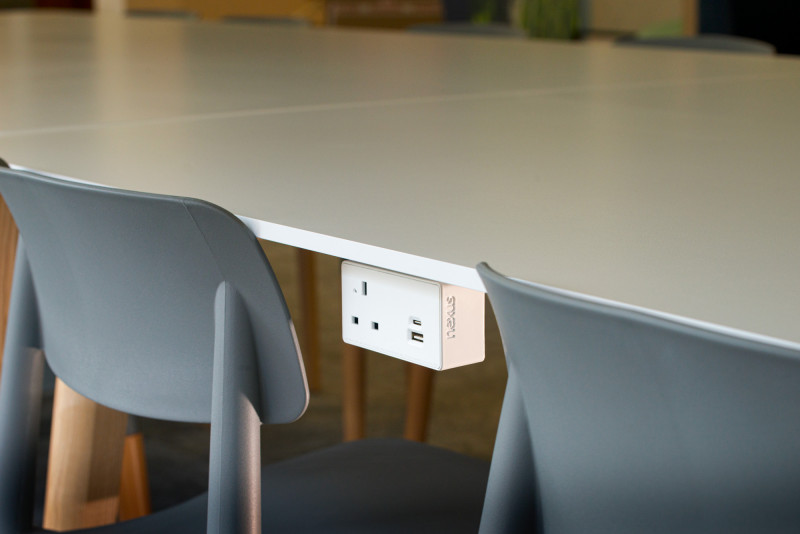

- Fits unobtrusively under the desk
- Decorative veneer cover plates to suit your aesthetic
- Single or double 240V power socket protected by our unique tool activated reset
- 100W USB-C Synapse™ smart functionality available, 30W USB-C and 27W USB-A as standard* (hub required)
- 0.5m cable with GST connector
- Non-fused - fitted with a thermal trip, with reset via tool
- Bespoke options for projects
- Exceeds BS1363-2, BS5733 (1,2 & 3) and ASTA Approved
*Requires below-desk Synapse™ hub for full functionality
learn more
Industry leading warranties
10 year, 2 year, and unlimited £ connected equipment warranty...
GaN charging technology
Nexus USB chargers deliver true fast charging, up to 70% faster...

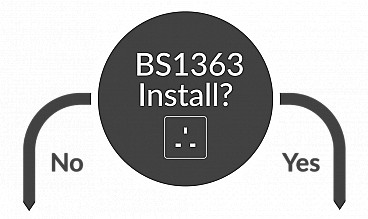

Legislation
BS6396:2008 applies to electrical systems in office & educational furniture connected to the supply...
Environmental responsibility
Nexus believes that we have a responsibility to protect the environment...
Frequently asked questions
Visit our FAQ's to learn more about Nexus, our products and services...
Loading resources...
resources
Download individual items by pressing Alternatively add resources to your crate to download as a batch by pressing next to an item. Click in the header to manage and download your resources
| code | housing colour | veneer | USB | 240V power |
|---|---|---|---|---|
| OSL104S1W | Silver aluminium | Gloss white | 30W USB-C, 27W USB-A (power only) | Single socket |
| OSL104S2W | Silver aluminium | Gloss white | N/A | Double socket |
| OSL104S3W | Silver aluminium | Gloss white | Synapse™ 100W USB-C, 27W USB-A (data & power) | Single socket |
| OSL104S1G | Silver aluminium | Gloss grey | 30W USB-C, 27W USB-A (power only) | Single socket |
| OSL104S2G | Silver aluminium | Gloss grey | N/A | Double socket |
| OSL104S3G | Silver aluminium | Gloss grey | Synapse™ 100W USB-C, 27W USB-A (data & power) | Single socket |
| OSL104S1B | Silver aluminium | Gloss black | 30W USB-C, 27W USB-A (power only) | Single socket |
| OSL104S2B | Silver aluminium | Gloss black | N/A | Double socket |
| OSL104S3B | Silver aluminium | Gloss black | Synapse™ 100W USB-C, 27W USB-A (data & power) | Single socket |
| OSL104W1W | White aluminium | Gloss white | 30W USB-C, 27W USB-A (power only) | Single socket |
| OSL104W2W | White aluminium | Gloss white | N/A | Double socket |
| OSL104W3W | White aluminium | Gloss white | Synapse™ 100W USB-C, 27W USB-A (data & power) | Single socket |
| OSL104W1G | White aluminium | Gloss grey | 30W USB-C, 27W USB-A (power only) | Single socket |
| OSL104W2G | White aluminium | Gloss grey | N/A | Double socket |
| OSL104W3G | White aluminium | Gloss grey | Synapse™ 100W USB-C, 27W USB-A (data & power) | Single socket |
| OSL104W1B | White aluminium | Gloss black | 30W USB-C, 27W USB-A (power only) | Single socket |
| OSL104W2B | White aluminium | Gloss black | N/A | Double socket |
| OSL104W3B | White aluminium | Gloss black | Synapse™ 100W USB-C, 27W USB-A (data & power) | Single socket |
| OSL104B1W | Black aluminium | Gloss white | 30W USB-C, 27W USB-A (power only) | Single socket |
| OSL104B2W | Black aluminium | Gloss white | N/A | Double socket |
| OSL104B3W | Black aluminium | Gloss white | Synapse™ 100W USB-C, 27W USB-A (data & power) | Single socket |
| OSL104B1G | Black aluminium | Gloss grey | 30W USB-C, 27W USB-A (power only) | Single socket |
| OSL104B2G | Black aluminium | Gloss grey | N/A | Double socket |
| OSL104B3G | Black aluminium | Gloss grey | Synapse™ 100W USB-C, 27W USB-A (data & power) | Single socket |
| OSL104B1B | Black aluminium | Gloss black | 30W USB-C, 27W USB-A (power only) | Single socket |
| OSL104B2B | Black aluminium | Gloss black | N/A | Double socket |
| OSL104B3B | Black aluminium | Gloss black | Synapse™ 100W USB-C, 27W USB-A (data & power) | Single socket |
